What is a Weaver Rail?

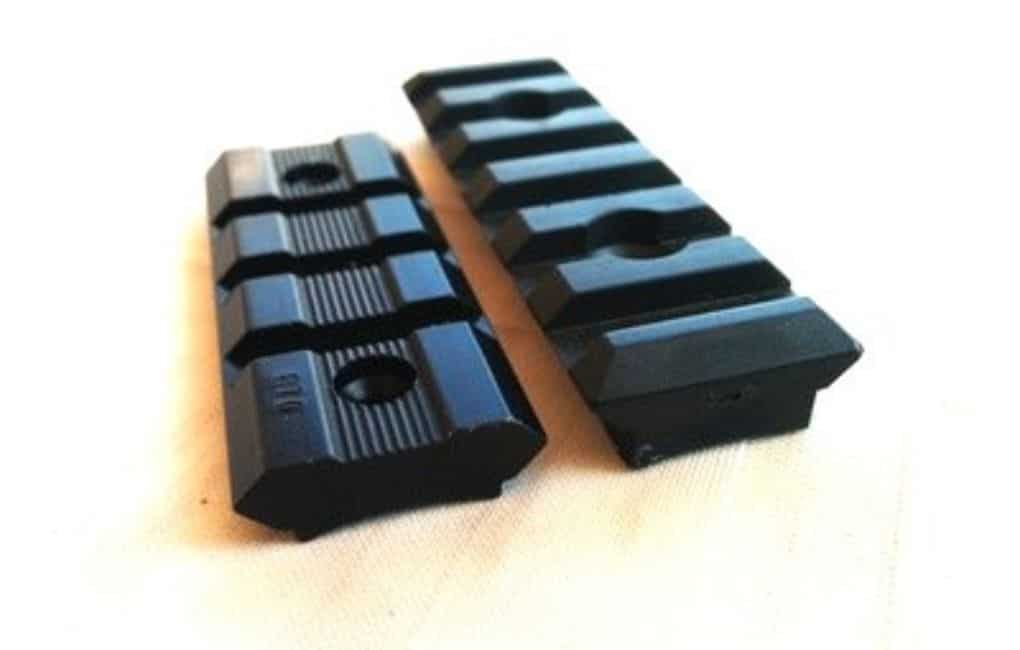

What is a weaver rail

What is a Weaver Rail?

Customizing a gun in the right way can have a big impact on how effective and functional it is for a firearm enthusiast. Fitting your rifle with the right accessories can greatly boost its functionality and performance. Most weapons are equipped with a weaver rail, a standardized mounting system that allows for the secure attachment of a wide variety of accessories.

This article dives into the background of Weaver rails, explaining their functionality, benefits, and why they might be the perfect solution for mounting your firearm accessories.

Weaver Rail: Definition

Weaver rails are a type of standardized mounting mechanism. Its distinguishing feature is the presence of a raised rail that is elongated yet remains flat on top. Weaver rails have parallel sides as well. It was invented in the 1970s by a gunsmith named William Weaver. The major purpose was to develop a more efficient and convenient method for attaching optics to weapons.

The most distinguishing aspect of the Weaver rail is the machined perpendicular slots. They travel across the top of the Weaver rail. There are additional cuts in the rings or base for attaching the rail. It is still feasible to mount many types of accessories securely and adaptably.

Some Weaver rails feature recoil grooves carved into the underside, which aid in draining heat and keep the attachment point tight even under high firing force.

Weaver Rail vs. Picatinny Rail

Weaver rails were one of the first major innovations in firearm accessory mounting, and shortly thereafter, the U.S. military developed a similar but upgraded version called the Picatinny rail in the 1990s.

Beneath the surface, the two systems have a roughly similar design: each includes a “rail,” or a raised segment with a cross-section resembling a trapezoid, with straight slots running down the centre of the rail for attachment applications. However, the differences are as follows:

  • Slot Spacing: Per 0.5-inch segments, the slot width on Weaver rails is to be larger and more spaced out, but Picatinny rails’ narrower, closer slots follow a more stringent standard. Therefore, there may be compatibility issues with some bases or mounting rings.
  • Dimensions: Each rail has a flat top, and the Picatinny rail system is reportedly larger, but not by much.

It’s important to note that some manufacturers may use the term “Weaver-style rail” for rails that closely resemble Weaver rails but might not adhere to the exact specifications.

Here’s a table summarizing the key differences:

Feature Weaver Rail Picatinny Rail
Slot Width 0.180 inches 0.206 inches
Slot Depth Shallower Deeper
Slot Spacing Not always standardized Standardized spacing (0.375 inches)
Recoil Grooves May or may not be present Typically present

Weaver Rail Mounting

Weaver rails are typically attached to the top of the receiver of a rifle or another firearm using screws or clamps. Locating the rail properly is important for maintaining the accuracy as well as the functionality of your mounted accessories. There is a wide variety of accessories compatible with Weaver rails, such as:

  • Scope rings – these rings will attach your telescopic sights to your Weaver rail.
  • Red dot sights – these sights allow you to acquire your target much faster than typical scopes. They can also be mounted on Weaver rails with suitable mounts.
  • Lights – weapon-mounted lights to be used in low light conditions can also be attached to a Weaver rail.
  • Other optics – other sighting systems, such as laser sights, can be mounted on a Weaver rail, depending on the intended application, with appropriate attachments.

Weaver Rail Width and Dimensions

In order for a Weaver rail to function properly, uniform dimensions are necessary. The standard width of a Weaver rail is 0.180 inches. The distance between its slots, adjusted from the center of one slot to that of the next, is approximately 0.375 inches.

Abiding by these dimensions will ensure that it is fully compatible with all manner of Weaver-style mounts and accessories.

Weaver-Style Rails

The concept of the Weaver rail is not limited to firearms. Weaver-style rails can be found on multiple platforms where secure attachment is required. These platforms include:

  • Camera mounts. For example, the whole camera body might have an integral Weaver-style rail for attaching a lens or some other accessory.
  • Similarly to rifles, bolt and broadhead shooting crossbows might feature Weaver-style rails for mounting a sight or some other component.

Deciding on the Best Suitable Weaver Rail

When deciding on the most appropriate Weaver rail, a number of factors should be considered:

  • Type of firearm. Depending on the size and design of your firearm, a certain rail size and possibly mounting method will be most suitable.
  • Intended purpose. For long-range shooting, a longer rail can be more suitable as it can accommodate a larger scope.
  • The type of accessories you are planning to mount will determine the appropriate rail. Make sure that a rail has enough slots to accommodate the entire setup.

In such a way, by considering these factors, it is possible to make a decision in the most appropriate direction where a chosen Weaver rail minimally affects the firearm, yet ensuring that it enhances and extends its functionality.

Conclusion

The weaver rail is a versatile and user-friendly platform on which numerous accessories can be mounted on firearms and other equipment. With the understanding of the core use and distinguishing factors of weaver and Picatinny rails, and the things to consider when selecting a rail, the user is now in a position to modify their firearm for the safest best performance.
