Types of Scope Mounts – A Detailed Guide

Types of Scope Mounts

Types of Scope Mounts – A Detailed Guide

Before choosing a scope mount, one should understand what it serves for. In the world of firearms, especially with the prevalence of military-grade weapons, scope mounts have become an essential component for enhancing a gun’s targeting capabilities. A scope mount constitutes transitional equipment between your rifle and your scope, aligning the two and creating a stable ground for aim.

Numerous types of scope mounts exist, and the selected one is likely to significantly influence one’s accuracy and ease of use. In this guide, the main types of scope mounts will be considered along with their advantages, drawbacks, and the reasons for choosing them.

Types of Scope Mounts

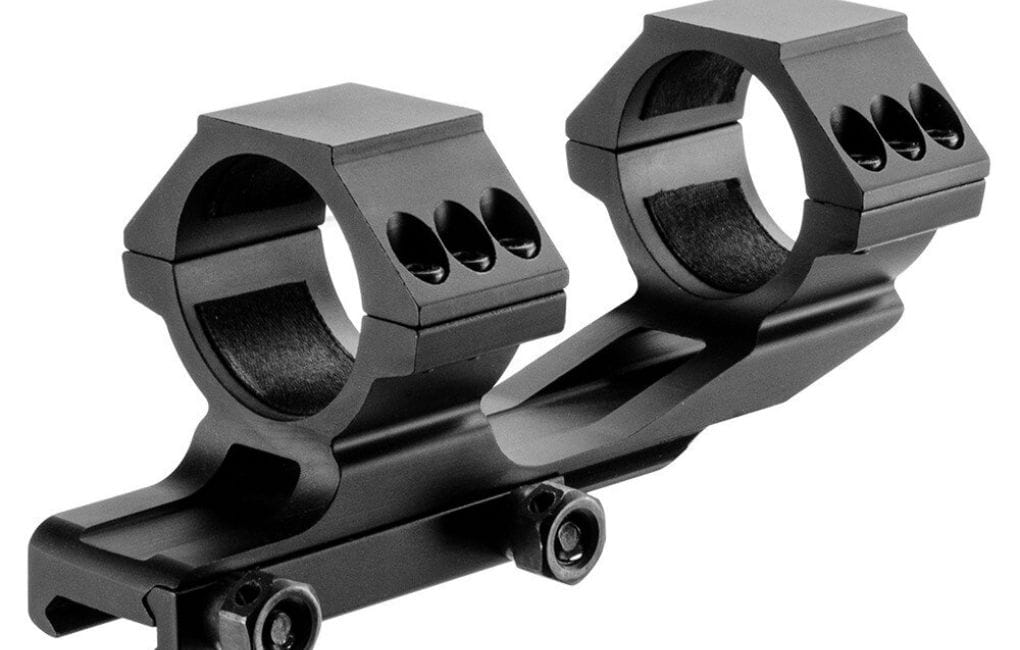

One-Piece Mounts: Simple and Reliable

A one-piece mount is a simple-to-use and reliable solution. Generally, it is a unified rector and ring combination, where a solid layer anchors to the rifle receiver, and scopes are attached to integral rings.

The entire system is a one-piece unit; thus, it eliminates the requirement to align the rings as a separate element. For this reason, it is suitable for novices and those who are looking to minimize the installation process.

  • Simplicity of use: The one-piece mount is easy to install, not demanding the skills of a high level of expertise in technical areas.
  • Accuracy of installation: since the mount is assembled in advance by its manufacturer, then the user who has chosen this variant is freed from the need to adjust the ring-annular bypass or alignment of the mount itself.

Disadvantages:

  • Weight: One-piece mounts can be heavier compared to separate ring and base combinations.
  • Rail compatibility: Some one-piece mounts might require a pre-installed Picatinny or Weaver rail on the receiver.

Scope Rings: Lightweight and Customizable

Scope rings are separate components that clamp onto a mounting rail on the rifle’s receiver. They offer a lighter-weight alternative to one-piece mounts and provide greater flexibility in terms of scope positioning. Specific ring heights are available to achieve optimal eye relief for different scopes and shooting positions. Additionally, specialized rings like canted rings cater to long-distance shooting techniques.

Advantages:

  • Lightweight: Separate rings contribute to a lighter overall weight on your rifle.
  • Customizable positioning: Rings allow for more precise adjustments in terms of scope eye relief and forward/backward placement.
  • Versatility: Rings are compatible with various mounting rails, offering wider platform compatibility.

Considerations:

  • Installation: Mounting separate rings requires slightly more technical expertise compared to one-piece mounts, involving ring alignment and proper torque application on the screws.

Weaver Scope Mounts: Legacy in Hunting Optics

Weaver mounts hold a significant place in the history of rifle scope mounting systems. They consist of a rail with slots machined at specific intervals. Scope rings with corresponding grooves fit onto these slots, securing the scope onto the rifle. However, it’s important to note that there wasn’t always a universal standard for Weaver mounts, leading to slight variations in slot width between manufacturers.

Points to Remember:

  • Historical significance: Weaver mounts played a pioneering role in establishing standardized scope mounting solutions.
  • Slot width variations: Earlier Weaver mounts might exhibit slight discrepancies in slot width, requiring specific ring compatibility checks.

Picatinny Scope Mounts: Universal Standard

Developed from the Weaver design, Picatinny mounts offer a more precise and standardized solution. These rails feature slots with exact specifications and tolerances, ensuring seamless compatibility with any Picatinny-compliant scope rings.

This universality has made Picatinny mounts the industry standard for military and tactical applications, and they are increasingly popular among civilian shooters due to their broad compatibility and reliability.

Key Difference: Picatinny mounts address the lack of uniformity in slot width that sometimes plagued Weaver systems by establishing a strict set of manufacturing tolerances.

Advantages:

  • Universality: Picatinny mounts ensure compatibility with a vast array of scope rings from different manufacturers.
  • Military-grade precision: The standardized design guarantees a secure and reliable mounting platform.

Dovetail Scope Mounts: Unique and Compact Option

Dovetail mounts stand out for their unique design. They utilize a wedge-shaped rail machined directly onto the receiver or barrel of the firearm. Scope rings with a complementary wedge shape fit snugly onto the dovetail, creating a secure hold. Dovetail mounts are often favored for their compact size and lightweight profile, making them suitable for air rifles and rimfire rifles where weight reduction is a priority.

Popularity and Uniqueness:

  • Compact and lightweight: The dovetail design minimizes the overall footprint and weight of the mounting system.
  • Compatibility: Dovetail mounts are typically specific to the rifle model they are designed for.

Use Cases:

  • Air rifles and rimfire rifles: Due to their lightweight nature, dovetail mounts are commonly found on these types of rifles.
  • Traditional bolt-action rifles: Some classic bolt-action rifles might feature integrated dovetail rails.

Cantilever Mounts: Proper Scope Arrangement

Due to the fact that a cantilever mount moves the scope forward from the receiver, it has a significant advantage. It is beneficial in the case of guns with a low receiver profile. For example, AR platforms are a prime example where the scope has to be elevated to provide the shooter with proper eye relief and sight pictures. In addition, cantilever mounts are useful in the case of firearms with bulky handguards and iron sights, which could be too high for the use of the standard scope mount.

Benefits:

  • Forward extension: The cantilever design allows for positioning the scope further forward, achieving optimal eye relief on rifles with low receiver profiles.
  • Improved sight picture: By elevating the scope, cantilever mounts can provide a clearer sight picture over handguards or iron sights.

Example: Taurus Tracker Scope Mount

The Taurus Tracker is a popular series of revolvers due to its versatility in hunting. Although the frame of the revolver is relatively low profile, it can be difficult to gain proper eye relief for a scope mounted onto it using a traditional mount.

A Taurus Tracker scope mount is designed in a cantilever pattern and as such raises the scope to bring it into alignment with the shooter’s eye.

Integral Mounts: A Rock-Solid, No-Frills Approach

Integral mounts refer to a unionized form between the scope and the rifle. Typically, they are machined onto the receiver of the rifle. That is to say, the bases and rings are not present for integral mounts. Consequently, they deliver the highest level of stability as well as a rock-solid sensation on the scope. They are popular among industries related to long-range shooting because they provide the most effective precision.

Advantages:

  • Unmatched stability: The direct connection to the receiver translates to exceptional rigidity and minimal risk of movement under recoil.
  • No drilling or tapping required: Integral mounts eliminate the need for modifying the firearm’s receiver, making them a user-friendly option for maintaining the rifle’s original form.

Considerations:

  • Limited availability: Integral mounts are typically found on specific high-end rifles or custom builds.
  • Weight: Depending on the design, integral mounts can add some weight to the rifle.

Choosing the Right Scope Mount

The variety of scope mounts allows choosing favor of a selection that fits a particular demand. To your requirements, it is possible to choose one or another mounting system suitable for a specific weapon or scope.

For a beginner, a one-piece scope mount or weaver/Picatinny mount with pre-aligned rings might be a good starting solution due to user-friendliness and reliability. On the other hand, for an experienced shooter who wants to reduce weight and make some customization, it may be better to choose separate scope rings.

Additionally, if the rifle has a low scope on the receiver or some special clearance necessities, the selected solution can be cantilever scope mounts. Finally, for long-range precision enthusiasts, who are also not ready to make compromises due to the need for the highest stability, integral mounts may be the best option.

By understanding the types of scope mounts and their unique characteristics, you can ensure a secure and optimal mounting platform for your firearm optic.
