How to Install a Picatinny Rail on Your Firearm

How to Install a Picatinny Rail on Your Firearm

How to Install a Picatinny Rail on Your Firearm

Picatinny rail, also known as the Weaver rail, allows you to upgrade your Glock (or any other pistol) with a variety of performance-enhancing attachments. The options include scopes and red dot sights for better target acquisition, as well as lights and lasers for increased visibility.

Choosing the Right Rail for Your Needs

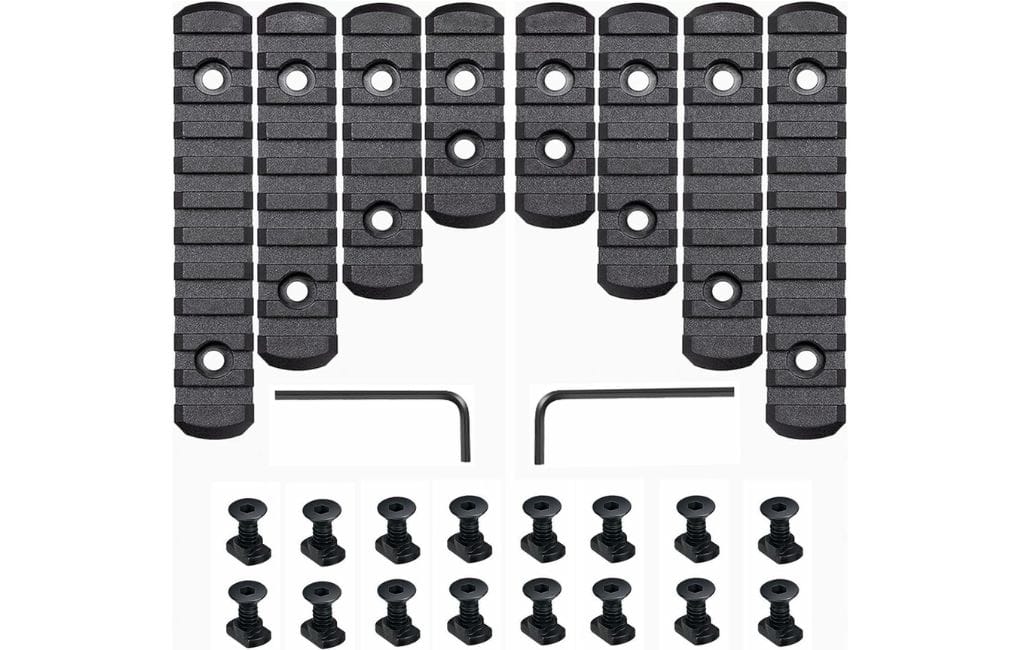

Picatinny rails come in various shapes and sizes to suit different applications. Here’s a breakdown of the most common types:

  • Full-length rails: These extend most or all of the way along the top of your firearm’s receiver, offering maximum space for multiple accessories.
  • Offset rails: These are shorter rails positioned slightly off-center, allowing you to mount a sight without significantly affecting the sight picture of your iron sights.
  • Handguard-specific rails: These rails are designed to attach directly to your handguard system, ideal for mounting lights, lasers, or forward grips.

Before purchasing a rail, ensure it’s specifically designed to fit your firearm model. We offer a wide selection of Glock parts and accessories, including Picatinny rails guaranteed to match your specific Glock model.

Related: List of Must Have Tactical Gear

Gathering the Necessary Tools and Prioritizing Safety

It’s important to gather the right tools and prioritize your safety. Here’s a breakdown of what you’ll need for the installation and how to make the process safe:

Tools for the Job:

Screwdriver:

Match the screwdriver type to the screw heads on your chosen rail. Most commonly, you’ll need a flathead screwdriver or an Allen wrench (also known as a hex key). Double-check the size of the screw head to ensure a proper fit that prevents stripping or damaging the screw.

Related: Buy Dovetail Optic Mount for Your Red Dot Sight

Torque Wrench:

Torque Wrench ensures the screws are tightened to the manufacturer’s recommended specifications. Using a torque wrench is essential for optimal stability and performance of the rail.

Look for a torque wrench with a range that accommodates the screw size used in your rail. Consider a click-type torque wrench for a clear indication of when you’ve reached the desired torque setting.

Loctite:

Loctite thread locker acts as a kind of glue for your screws, preventing them from loosening due to vibration or recoil during firing. Opt for a medium-strength Loctite, like Loctite 242. A small bottle will last for multiple installations.

Related: Buy Glock Magazine Online

Safety First, Always:

Unloaded Firearm:

This is an important safety step. Always double-check that your firearm is completely unloaded and remove any ammunition from the vicinity before beginning the installation. Refer to your firearm’s manual for proper unloading procedures specific to your model.

Eye Protection:

Safety glasses rated for impact (ANSI Z87.1) are essential. These glasses shield your eyes from any debris or accidental tool slips during the process.

Clear Work Area:

Choose a well-lit and clean workspace for the installation. Having a clear and organized area helps prevent accidental bumps or misplaced tools.

Optional Tools for a Smoother Process:

Vise Block:

This secures your firearm in a stable position during installation, making the process easier and more precise. While not essential, it can be a helpful addition for those who value extra stability.

Torque Wrench Adapter:

If your torque wrench is too large to fit comfortably in some of the tighter spaces around the rail, consider a torque wrench adapter. This adapter provides a smaller socket that allows you to reach those hard-to-reach areas while still using your torque wrench for precise tightening.

By gathering the right tools and prioritizing safety, you’re setting yourself up for a successful and secure Picatinny rail installation.

Remember, if you’re unsure about any step or feel uncomfortable working on your firearm, don’t hesitate to consult a qualified gunsmith for assistance.

Preparing the Firearm for Rail Installation

  1. Unloading: Verify that the chamber and magazine are empty. Refer to your firearm’s manual for proper unloading procedures specific to your model.
  2. Cleaning: Use a degreaser or alcohol wipes to thoroughly clean the mounting area (receiver) where the rail will be attached. This removes dirt, oil, and debris that could hinder a secure installation.

General Steps for Installing a Picatinny Rail (Rifle & Shotgun)

Below you will find general steps, as most probably there are some slight differences depending on the specific firearm you own. It is also important to also read your firearm’s manual for better.

Alignment:

Make sure to align the Picatinny rail with the corresponding mounting holes on the receiver. The mount should be flush for optimal stability. You may need to slide the rail forward or backward before it fits the holes perfectly.

Also, pay close attention to the receiver profile, especially for shotguns with ventilated ribs that could affect rail placement.

Screw Placement:

Once you align all holes on the rail with the receiver mounting holes, insert the screws or bolts that come with the rail in the holes and through the receiver. Do not tighten too much at this point. You need screws to hold the rail but not to be fastened completely.

Loctite Application:

Now, apply a small amount of Loctite thread locker, Loctite 242 will do, to the threads of each screw. Loctite will secure your screws from getting loose due to the vibrations or recoil.

Be careful with Loctite; too much product can be squeezed out, preventing you from adequately tightening the screws or damaging the finish of your firearm.

Torque Specifications:

Use the torque wrench to tighten the screws according to manufacturer’s specs. In any rail manual or your firearm website, you will find how much torque needs to be applied to install the mount securely, but do not overtighten not to damage the threads or the receiver.

Notable Tips:

  • Degrease the mounting surface of the receiver and the rail with a proper cleaning solvent before installation to ensure a strong bond.
  • Use a gun vise to securely hold your firearm in place while installing the rail, especially for heavier rifles.
  • Double-check your work and ensure all screws are tightened to the proper torque specifications before attaching any accessories to the rail.
  • Some shotguns might require additional hardware like adapter plates to accommodate a Picatinny rail. Ensure you have the necessary parts for proper installation specific to your shotgun model.

Safety First:

If you are not comfortable installing the Picatinny rail yourself, it’s always best to consult a qualified gunsmith to ensure a safe and proper installation.

Mounting Accessories on Your Picatinny Rail

Your Picatinny rail provides a versatile platform for firearm accessories. Let’s explore how to mount common attachments:

How to install a scope on a picatinny rail?

  • Mounting Hardware: You’ll need scope rings or a base sized specifically for your scope’s diameter. These components secure the scope to the rail and ensure proper alignment for accurate aiming.

Installation Process:

  1. Align the Rings/Base: Match the holes on the rings or base with the slots on the Picatinny rail.
  2. Secure the Mount: Use the provided hardware to fasten the rings/base to the rail. Tighten the screws following the manufacturer’s torque specifications (often found in the manual or online).

How to Attach Red Dot Sights & Other Accessories:

  • Direct Mounting: Many red dot sights and other accessories attach directly to the Picatinny rail using the included hardware.
  • Consult the Manual: Always refer to the specific instructions provided with your chosen accessory for proper installation.

Key Points for Installation

  • Alignment: Proper alignment of your scope or accessory is important for optimal performance and accuracy. Double-check everything before use to ensure a centered and level placement.
  • Torque: Ensure all screws are tightened to the recommended torque for a secure and stable mount. Refer to the manufacturer’s instructions for specific torque values. This prevents damage and ensures accuracy.

Testing and Final Adjustments

Before taking your firearm to the range, you should conduct a thorough inspection:

  1. Reassemble: Reassemble your firearm completely, ensuring all parts function properly.
  2. Stability Check: Inspect the rail and attached accessories for any signs of movement or looseness.
  3. Alignment Verification: Double-check the alignment of your sights or scope for accuracy.
  4. Live Fire Testing (Optional): For advanced users, consider live fire testing at a safe shooting range to confirm zeroing.

You’re wondering, What is zeroing?

Zeroing refers to the process of aligning your sights or scope with the point of impact of your bullets. This ensures your firearm shoots accurately at a specific distance.”

Here’s how to conduct live fire testing for zeroing:

  • Follow all safety protocols at the shooting range.
  • Secure your target at the desired distance (typically 25 yards for initial zeroing).
  • Fire a few test rounds and observe the point of impact on the target.
  • Adjust your sights or scope (refer to the manufacturer’s instructions) based on the observed point of impact compared to your aiming point.
  • Repeat the process until your sights or scope are zeroed, meaning your point of aim coincides with the point of impact at your chosen distance.

Conclusion

After following the steps above, you should have been able to successfully install a Picatinny rail on your firearm. Indeed, with the increased versatility, your firearm opens into a world of possibilities. The rail or the accessories on it will help you have a better shooting experience, increase the accuracy, and even help you personalize your firearm according to your desires.
